Spindle Bore: 1.41 in, 36 mm; Drawtube Bore 0.98 in, 25 mm

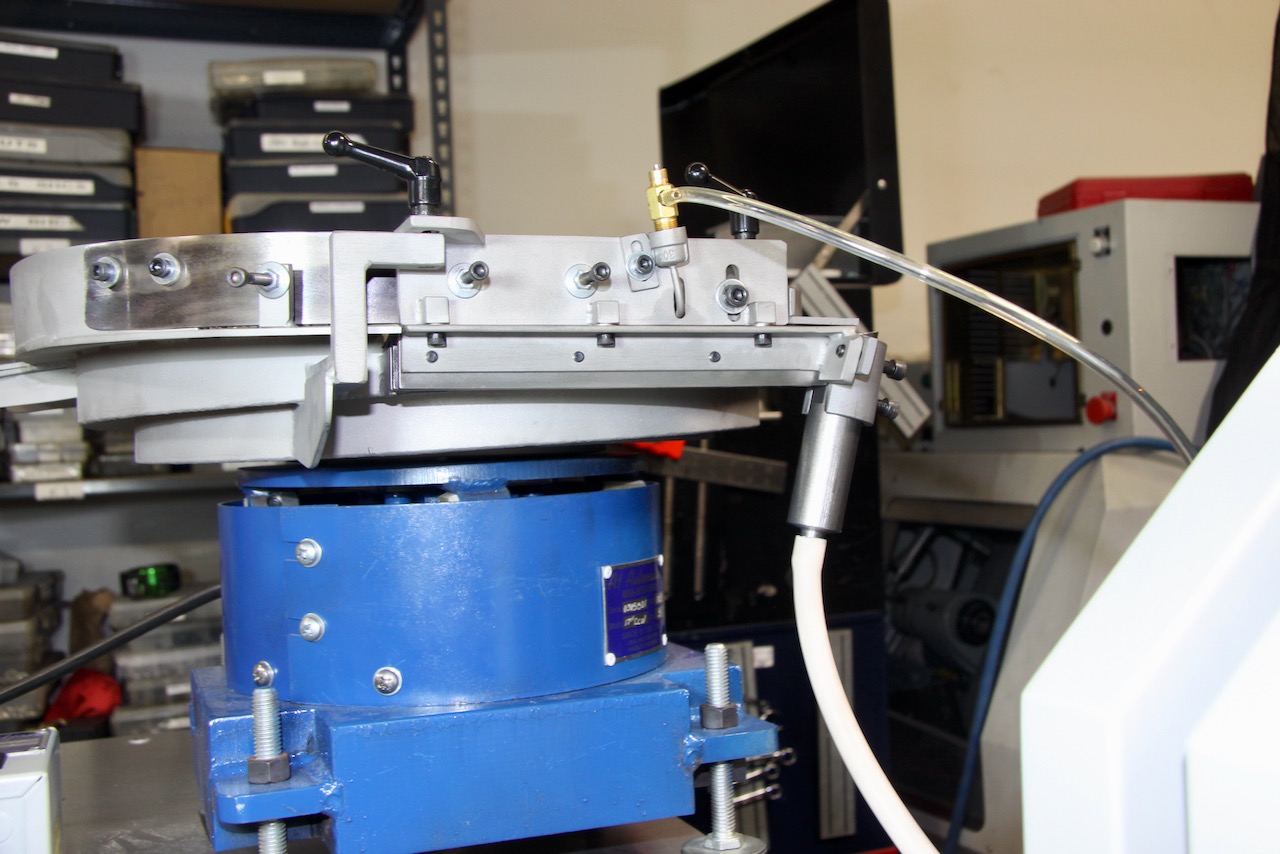

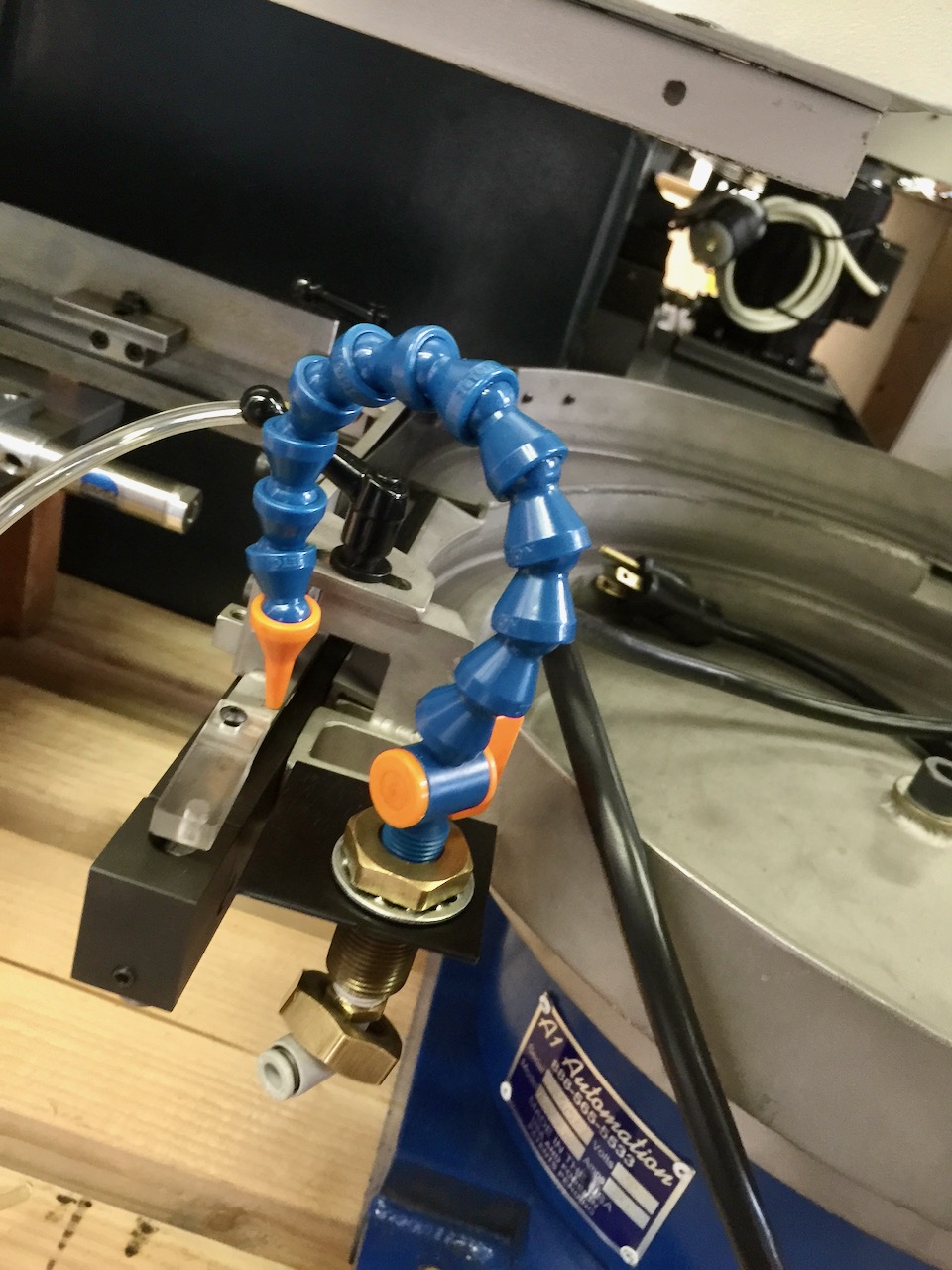

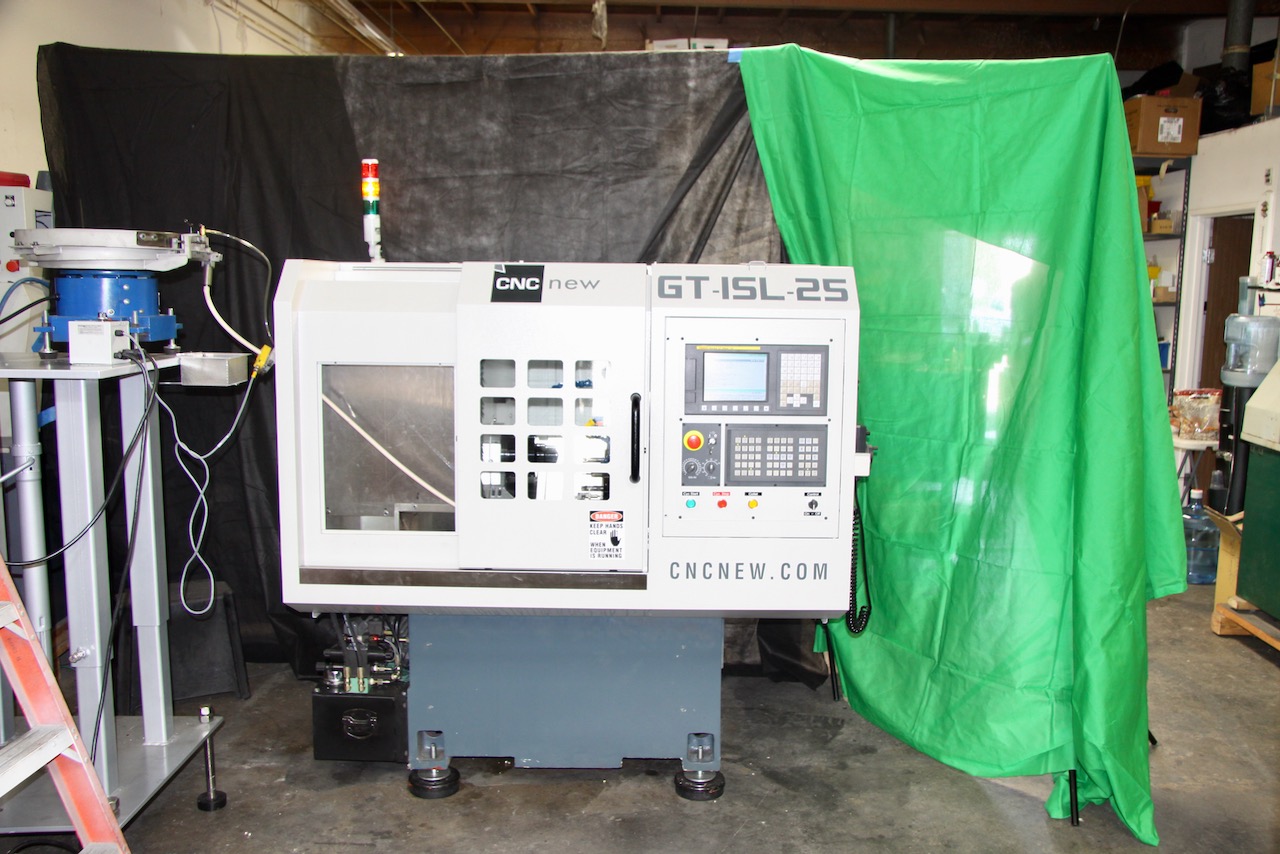

We are delighted to present the GT-5 model gang tool lathe. This is our smallest-footprint gang lathe and is an excellent platform for automation. We are confident that you will find this product a versatile, flexible, and reliable addition to your company’s manufacturing capabilities. Our single-piece heavy casting is the culmination of years of experience in machine tool manufacturing and offers the best features for gang tool and turret lathe construction.
|
GT-5 Specifications
|
|
Capacities
|
S.A.E
|
Metric
|
|
Max Turning Diameter
|
11 in
|
280 mm
|
|
Max Swing Over Table
|
3.5 in
|
90 mm
|
|
Bar Capacity
|
0.98 in (Opt.1.06299in)
|
25 mm (Opt. 27 mm)
|
|
Travel & Feed Rates
|
|
|
|
X-Axis Travel
|
12 in
|
304 mm
|
|
Z-Axis Travel
|
8 in
|
203 mm
|
|
Rapid on X-Axis
|
1,180 in/min
|
30 m/min
|
|
Rapid on Z-Axis
|
1,180 in/min
|
30 m/min
|
|
Axis Max Feed Rate
|
400 in/min
|
10.15 m/min
|
|
Spindle
|
|
|
|
Power Rating
|
5 hp (7.5 hp optional)
|
3.7 kW
|
|
RPM
|
100 – 4,500 rpm
|
100-4,500 rpm
|
|
Spindle Bore
|
1.41 in
|
36 mm
|
|
Drawtube bore
|
0.98 in
|
25 mm (Optional 27 mm)
|
|
Spindle Nose
|
A2-4
|
A2-4
|
|
Collet Actuator
|
Hydraulic Cylinder
|
Hydraulic Cylinder
|
|
Base
|
|
|
|
Integral Casting
|
One-Piece Construction
|
Slant Angle 45-degree
|
|
Rail Span
|
14.25 in
|
362 mm
|
|
Casting Weight
|
2,200 lbs
|
1,000 kgs
|
|
Linear Rails
|
0.98 in P3 Accuracy
|
25 mm P3 Accuracy
|
|
Ball Screws Precision
|
Ground 0.98 in C3
|
Accuracy 25 mm
|
|
Auto Lubrication
|
Linear Rails and
|
Ball Screws
|
|
Head Stock
|
Cast Iron
|
|
|

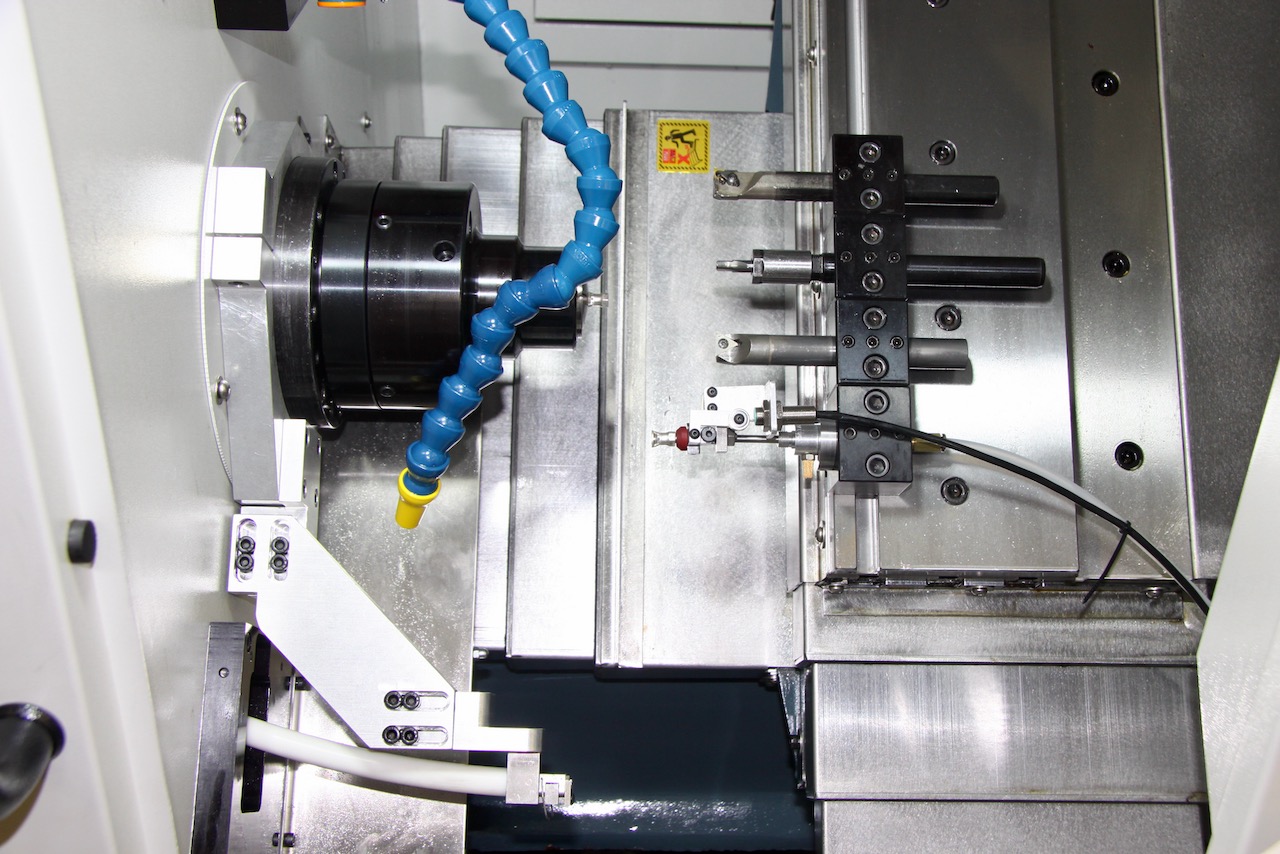

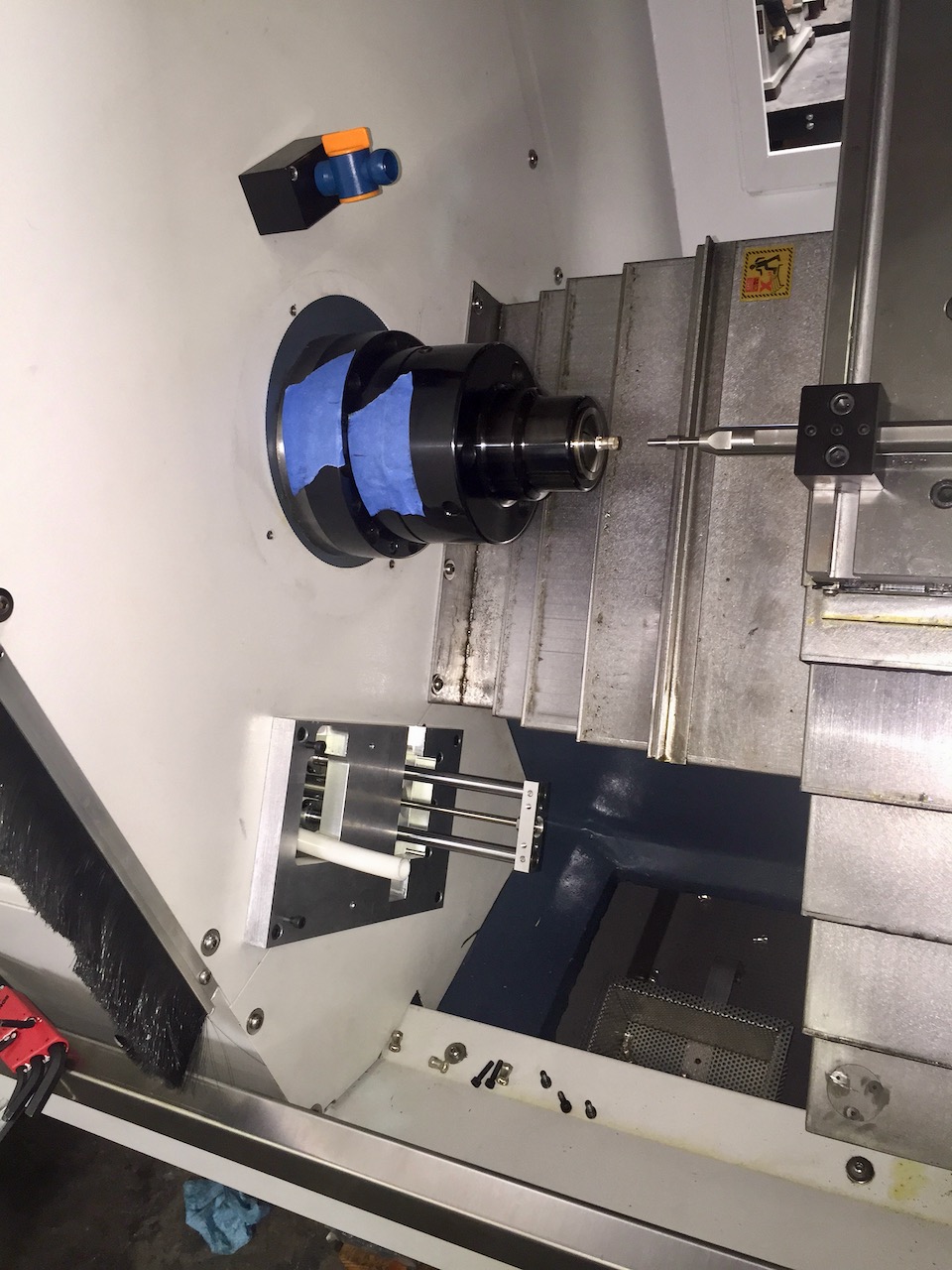

Turret Workholding
|
|
|
|
Gang Turret Table HT.
|
1.732 in
|
45 mm
|
|
Table Length T-Slot
|
17.71 in
|
450 mm
|
|
Chuck Size
|
5.3 in
|
135 mm
|
|
Collet Nose Options
|
5C, 16C, 3J, Threaded
|
Dead Length
|
|
Center Height Holders
|
¾ in tool holders
|
Custom Blocks
|
|
Precision
|
|
|
|
Positional Repeatability
|
±0.0001 (one-tenth)
|
0.00254 mm
|
|
Positional Resolution
|
±0.00005 (50 millionths)
|
0.00127 mm
|
|
Positional Accuracy
|
±0.0001 (one-tenth)
|
0.00254 mm
|
|
Spindle Runout
|
0.00005 (50 millionths)
|
0.00127 mm
|
|
C-Axis Indexing
|
Increment 0.001°
|
360,000 Radial Position
|
|
Requirements
|
|
|
|
Coolant Capacity
|
15 gallons
|
60 Liters
|
|
Coolant Pump
|
3/4 hp
|
0.5 Kilowatt
|
|
Power Required
|
7.5 KVA 25 amps
|
208-240 VAC 3-Phase
|
|
Machine Dimension
|
|
|
|
Floor Space L X W
|
55 X 29 in
|
1,380 X 710 mm
|
|
Machine Height
|
55 in
|
1,430 mm
|
|
Sheet Metal Length
|
71 in
|
1,816 mm
|
|
Sheet Metal Width
|
48 in
|
1,140 mm
|
|
Machine Weight
|
3,600 lbs
|
1,636 kgs
|
